      • Hikmicro type

        TR35 thermal imaging

        no logo mark, blank packaging.

        35mm focal length, resolution of 384X288.



        broken image
      • product features





        TR35 thermal image scope is equipped with high-sensitivity IR detector, and adopts advanced thermal imaging technology, to get clear view in poor visible or dark environment. It helps to view the target and measure the distance. It can view the moving target and meet the outdoor condition. The device can be used in patrolling, researching, rescuing and hiking.



        Hot tracking: The device can detect the highest temperature in the scene and mark the spot.

        Reticle correction: The reticle helps you to aim at the target fast and accurately.

        Client software connection: The device can capture snapshots, record videos and set parameters by T-Vision App after being connected to your phone via hotspot.

        Imaging correction: The device supports DPC (Defective Pixel Correction) and FFC (Flat Field Correction) which can optimize the image quality.



      • TR35 product presentation

        Video of TR35 before shipping

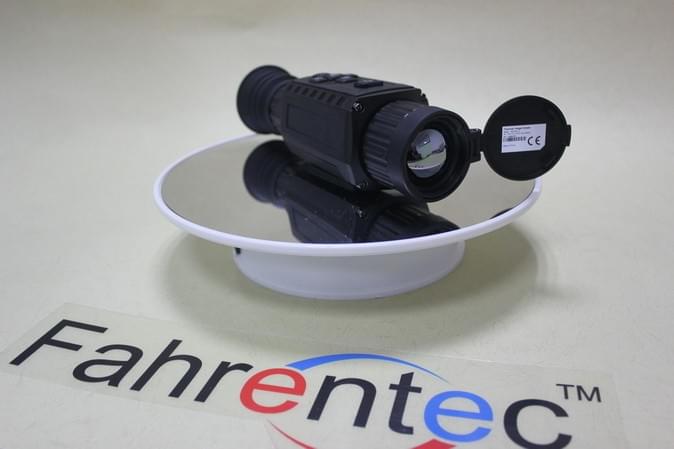

      • rifle sight large lens

        non-label product

        Minimum order quantity 10 units. Stock available.

        35mm focal length, 17um pixel pitch.

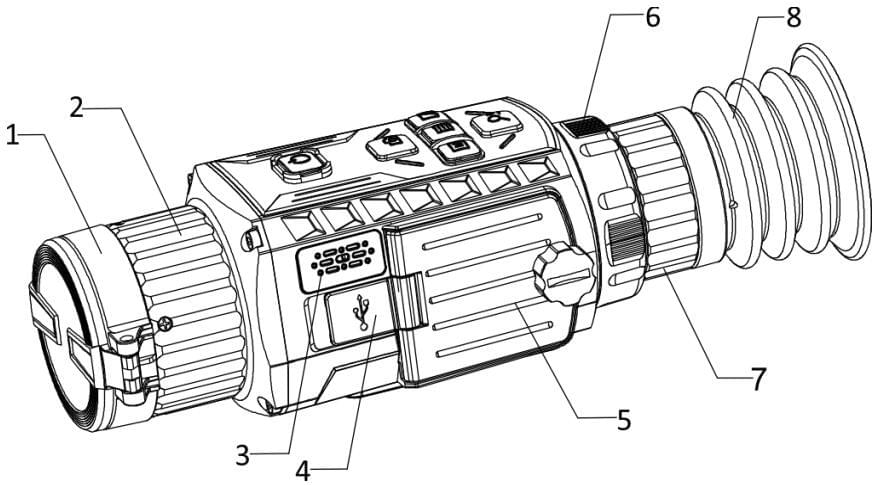

      • structure description



        the structure description of TR35 thermal scope
      • 1-Lens cover

        Protect the lens

        2-Focus ring

        Adjust the focal length

        3- Microphone

        Input audio information

        4-Data exchange interface

        Charge the device and transmit data

        5-Battery compartment

        Install the device battery

        6-Fixing ring

        Fix the eyepiece

        7-Diopter adjustment ring

        Adjust the dioptric correction

        8-Eyepiece

        View the targe

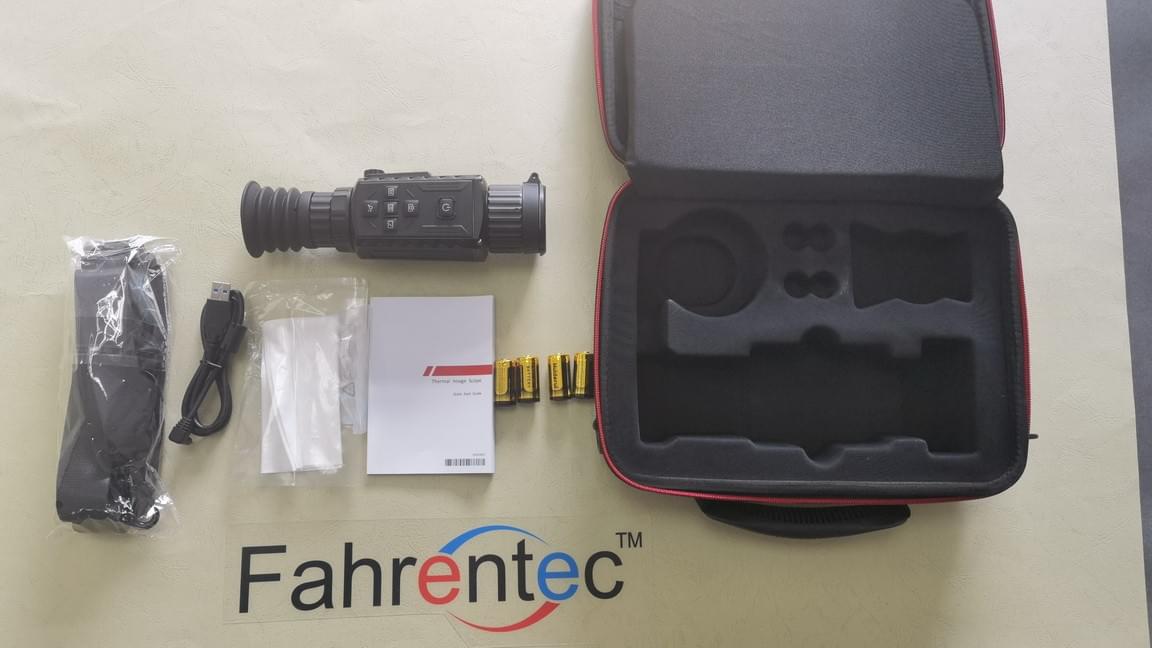

      • full package



        packaging of TR35 thermal imager
      • infrared imaging



        fusion

        fusion

        red hot

        red hot

        white hot

        white hot

        black hot

        black hot

      • online shop

        Now you can do online shopping for most of our products.



        Even just for 1 unit!

        Go To Our Shop
        thermal scope online store
      • contact us

        Submit your massage, our colleague will Email you back in 24 hours!
